This Machine is suitable for producing different sizes of paper straws, such as 5mm; 6mm; 8mm; 10mm etc.

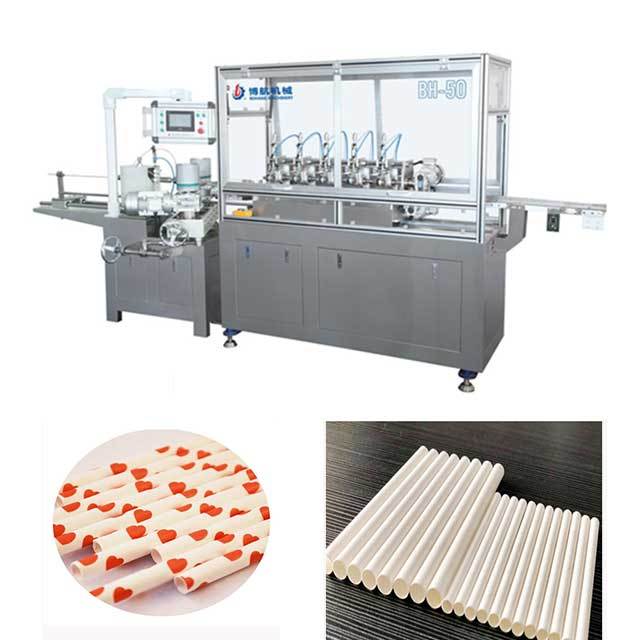

Online InquiryBH-50High-speed CNC Paper Straw Machine
Technical
Parameters:
|
Paper Layer |
3 layers |
|
Inner Diameter |
4.5-12mm |
|
Wall Thickness |
0.3-1mm |
|
Stable Speed |
30-40 meters/min |
|
Cutting System |
Multi-blades Cutting (5 pcs online) |
|
cutting system |
Servo motor synchronism tracking cut |
|
Gluing Way |
Single & Double sides |
|
Machine & Parts |
Stainless Steel or Painting (Optional) |
|
Auto Straw Collector |
Optional |
|
Operator |
1-2 person |
|
Speed Control |
By Inverter |
|
Power Supply |
380V / 3Phase / 50Hz |
|
Paper Reel Stand |
3 Layers |
|
Glue Unit |
3 Layers |
|
Belt |
5 Pieces |
|
Mandrel Shaft |
2 Pieces |
|
Measurement |
3500*1500*1200mm |
|
Weight |
1300kgs |
|
Working Space |
About 8000*5000mm |
Escriptions: This Machine is suitable for
producing different sizes of paper straws, such as 5mm; 6mm; 8mm; 10mm etc.
1. Adopted with PLC controller; main motor is equipped with variable frequency
speed regulation; touch screen man-machine interface. Easy for parameters
setting & operating.
2. Cutting section adopted with numerical multi-blades cutting system. Servo synchronous
tracking cutting system makes it higher precision and multi-blades cutting
makes it higher efficiency.
3. Machine body and main spare parts made by stainless steel instead of
painting. Ensure the hygiene and environmental protection of the products.
